Plan 20-070
Copyright by Designer
Plan 20-070
Starting at
$1,295.00
$1,295.00
Square Feet
2994
Bedrooms
4
Bathrooms
3
Garage Stalls
3
Floors
1
Half Baths
1
Width
84' 10"
Depth
86' 10"
Height
32'
Square Feet
2994
Bedrooms
4
Bathrooms
3
Garage Stalls
3
Floors
1
Half Baths
1
Width
84' 10"
Depth
86' 10"
Height
32'
Copyright By Designer
Questions About This Plan
Do you have any specific questions about this plan? Click below to ask a designer what your curious about.
Modify This Plan
Not QUITE what you are looking for?
Get a fast, free quote to make it yours!
Features
Square Footage
Dimensions
Details
Style
Modern FarmhouseOutdoor Features
Front Porch, Rear Porch, Outdoor Fireplace, Outdoor KitchenBedroom and Bath Options
Bedrooms – Split, Master Bedroom at Rear, Jack and Jill BathroomKitchen and Dining
Kitchen Island, Open Floor Plan, Walk-In PantryLaundry Location
Laundry Near Mud Room, Laundry Near KitchenAdditional Rooms
Study/OfficeGarage Type
Side EntryFoundation Type
SlabPlan Description
Plan 20-070 is more than just a house plan; it's a blueprint for a life well-lived, a place where memories are made, and dreams take shape. This isn't just about walls and roofs; it's about creating a sanctuary that reflects your unique style and provides comfort for years to come.
The Heart of the Home: Flow and Function
As you step inside, you'll immediately notice the thoughtful flow of the floor plan. The open layout seamlessly connects the living spaces, creating an inviting atmosphere perfect for both entertaining and everyday living. The kitchen, with its large island, becomes the heart of the home, a place where family and friends gather to share meals and laughter. The adjacent living area, bathed in natural light, offers a cozy retreat for relaxation.
A Master Suite Oasis
The master suite is thoughtfully designed as a private oasis. Tucked away for peace and quiet, the master bedroom offers a serene escape from the hustle and bustle of daily life. The ensuite master bathroom is a spa-like haven, offering a place to unwind and rejuvenate. And the walk-in closet provides ample space for your wardrobe, keeping everything organized and easily accessible. It’s a personal retreat designed for comfort and convenience.

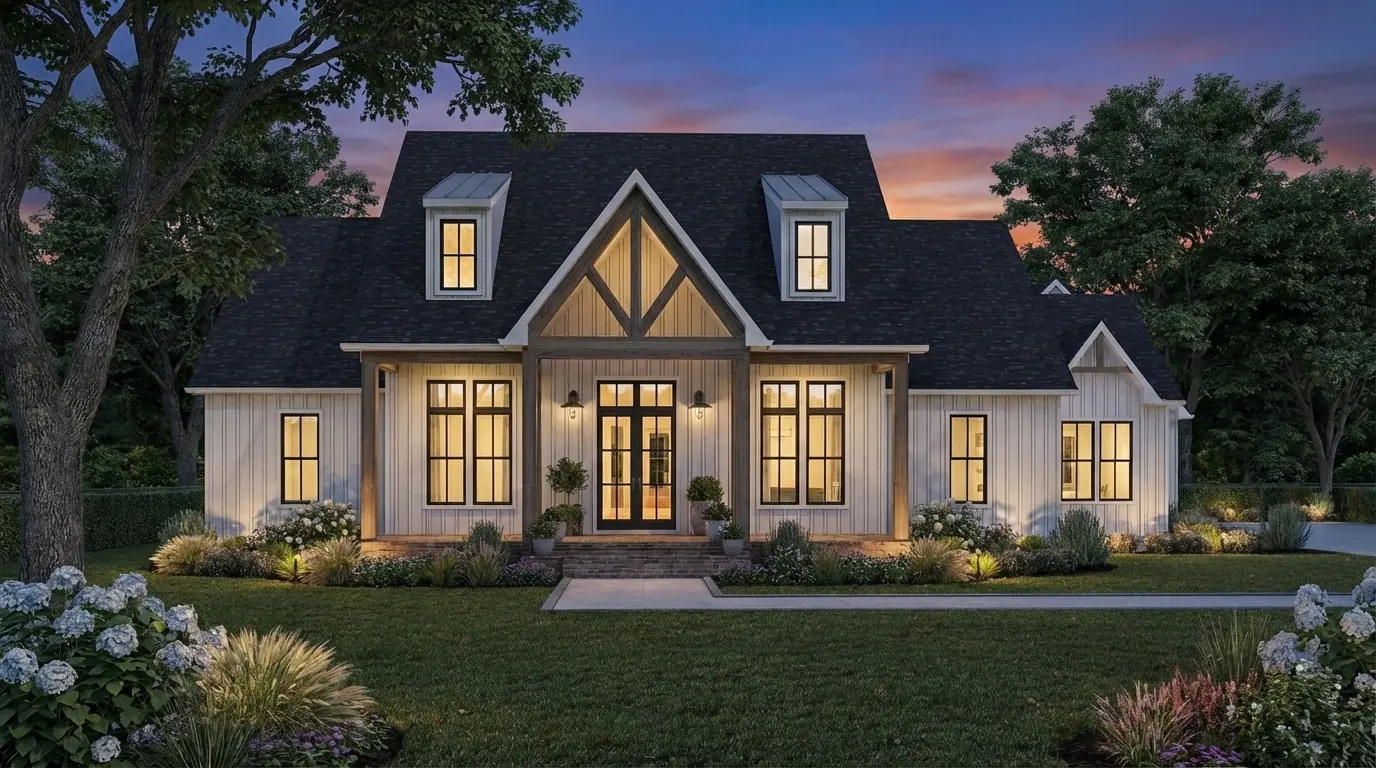

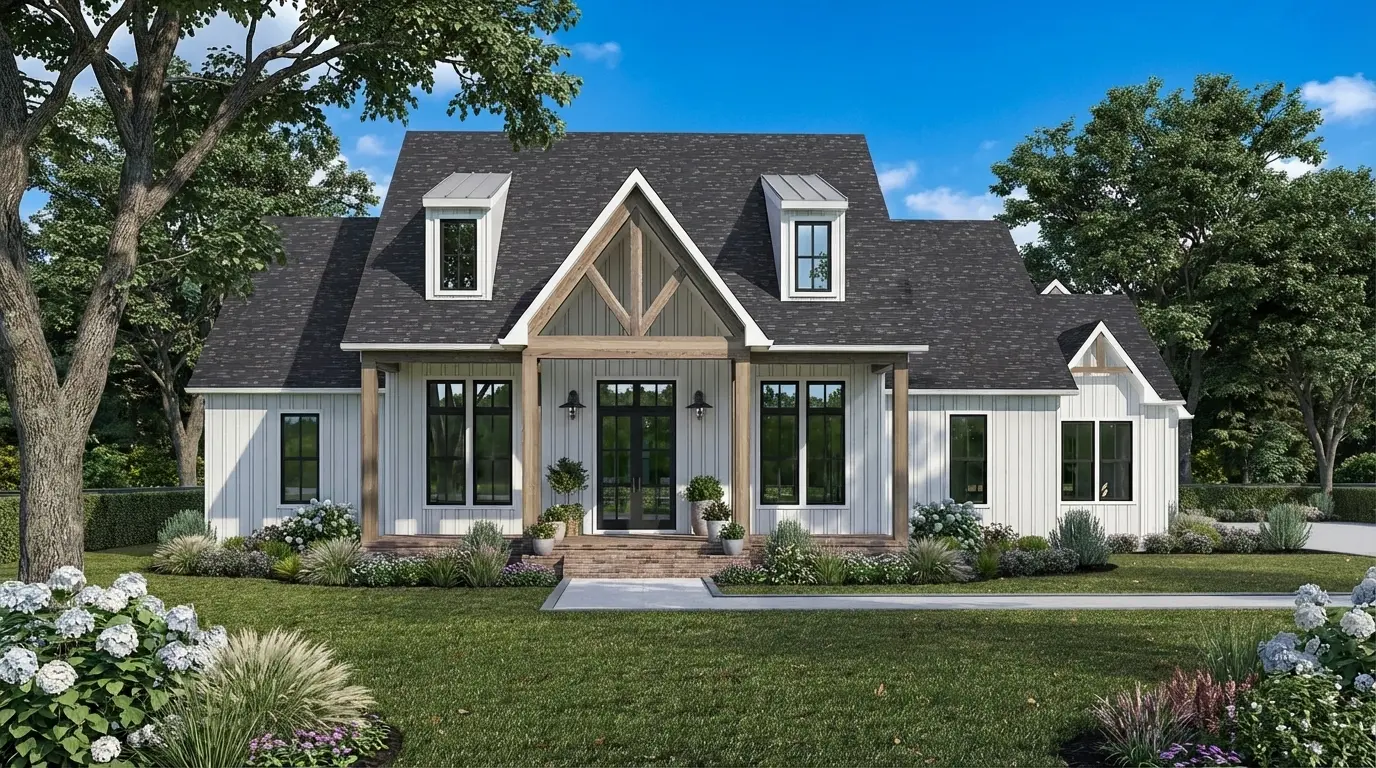

Exterior Charm: Southern Style
The exterior elevation exudes timeless Southern charm. A welcoming front porch invites you to sit and savor the simple pleasures of life, from morning coffee to evening sunsets. The architectural details, blend seamlessly, creating a warm and inviting facade that welcomes you home. It’s a design that stands the test of time, offering curb appeal that you'll be proud of.
Plan 20-070 isn't just a house; it's a home waiting to be filled with your life, your laughter, and your love. It's an investment in your future, a place where you can create lasting memories and build the life you've always dreamed of.
What's Included
Floor Plan: Complete dimensions. Provides designation of all rooms, closets, cabinets, stairs, etc. Windows and doors clearly indicated with sizing and door swing direction. Permanently installed equipment indicated (cabinets, built-ins, plumbing fixtures, HVAC units).
Foundation Plan: Provides Complete dimensions. Slab layout and details where applicable. All concrete footings, pad, foundation wall and grade beams are shown.
Elevations: Front, Rear, Left and Right-side exterior elevations. Indicates all exterior finish materials. Finished floor lines with vertical dimensions. Shows all window and door openings.
Roof Plan: Perimeter rooflines, hip, valley, and ridge locations. All roof pitches, overhangs and necessary dimensions.
Wall Sections: Full wall section through house. Necessary Framing Details.
Schedules: Door and Window sizes, Room Finishes and information.
Cabinet Elevations: Elevations of all cabinetry.
Electrical: Indicates schematic layout of all outlets, switches and fixtures.
What's Not Included
Stamps: Depending on the city, county, and state building requirements, house plans may need to be reviewed by an architect or engineer for structural details and code standards. Contact a local architect or engineer to verify the requirements for your location.
Site Plan: A site plan shows how the house will fit on the lot between the property lines and the setbacks. It also shows the driveway and where parking, drainage easements, utility easements, and walkways should be constructed. Contact a civil engineer or surveyor to obtain the site plan.
Mechanical Drawings: These types of drawings show information about heating, ventilation, and air conditioning. Contact a local HVAC company to obtain mechanical drawings.
Plumbing Drawings: Plumbing drawings show the location of all plumbing materials throughout the house and outside. Contact a local plumbing contractor.
Energy Calculations: Energy calculations determine how energy efficient your new home will be. Contact a local engineer to dictate these calculations.
